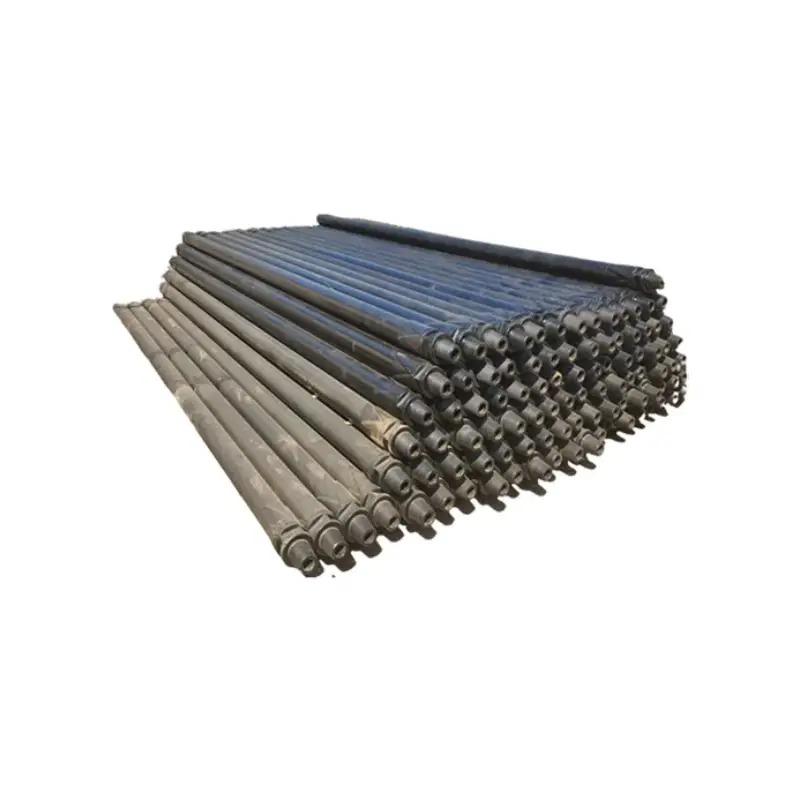

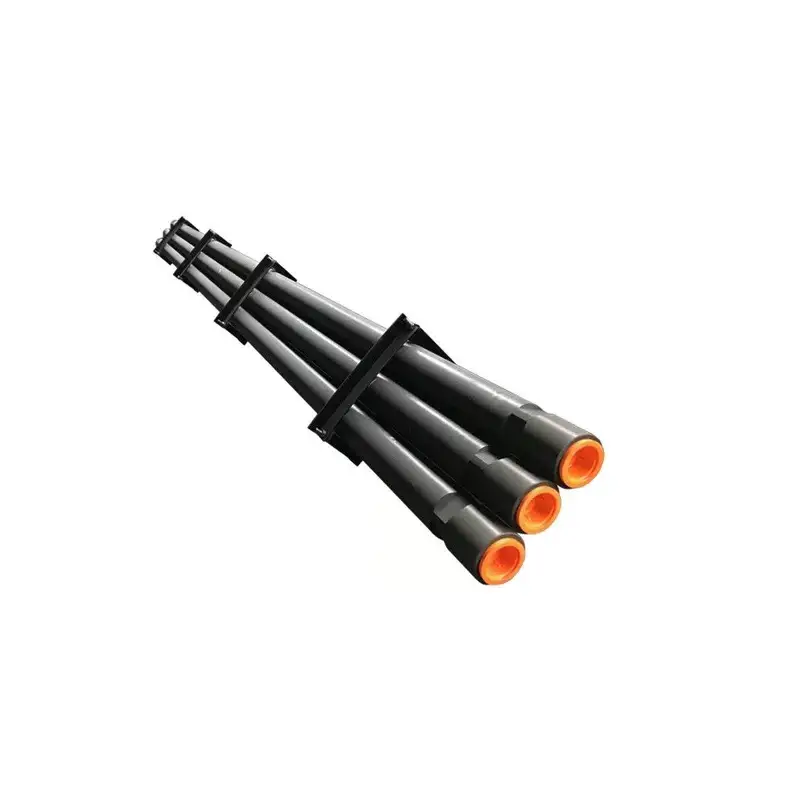

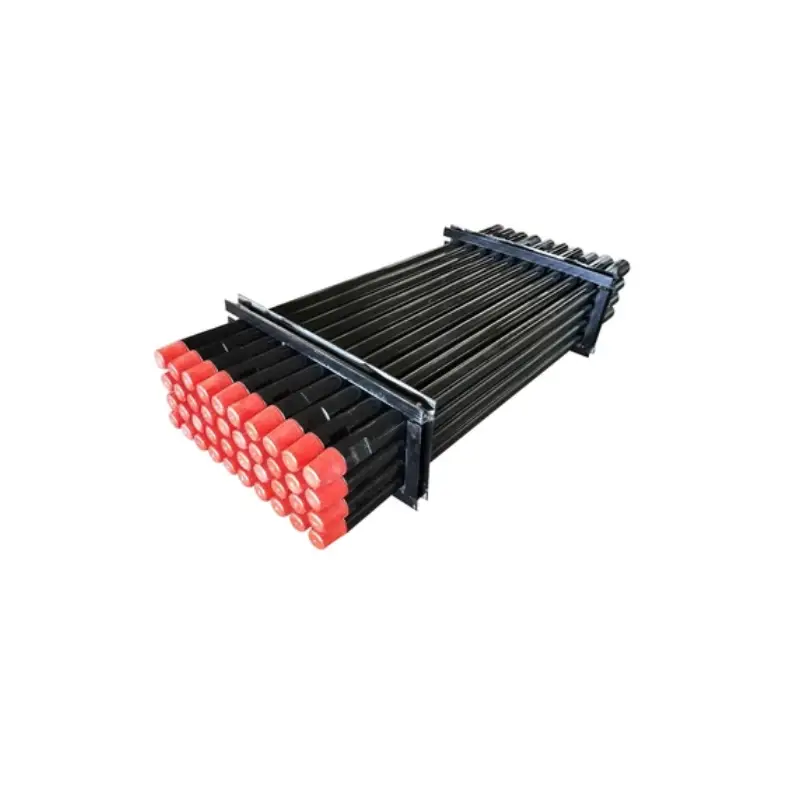

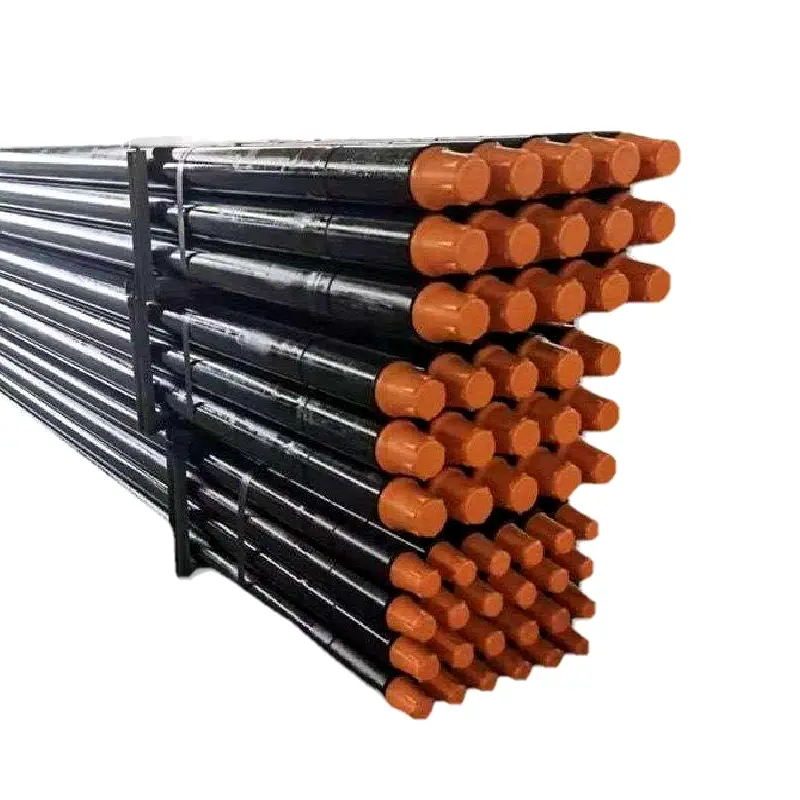

DTH Drill Pipes/Tubes

DTH Drill Pipes/Tubes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability.

Description

Ame Drill DTH Drill Pipes/Tubes

DTH drill rods transmit compressed air, to power the hammers to perform drilling work. Sinodrills DTH drill pipes are made of superior alloy and both thread ends are friction welded to the seamless steel pipe. The high pressure air is delivered to the DTH hammer by the DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.

Features of DTH Drill Pipes/Tubes

• Complete sizes for option, suitable for different types of DTH drilling system;

• The rods are made of cold-drawn steel with high manufacturing precision;

• Thread joint sturdily linked to the rod via friction welding;

• Nitriding process grants the thread joint good hardness, good wearing quality and thus long lifespan.

Applications of GSE SD DTH Bit

Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc.

Parameters of DTH Drill Pipes/Tubes

OD (A)	Wall thickness (B)	Effective length (L)	Wrench flat (C/G)	Joints connection
mm	mm	mm	mm	Pin – Box
76	5.5	1000/1500/2000/3000	57/65	2 3/8” REG
76	6.5	1000/1500/3000/4000/5000/6000	65	2 3/8” REG
89	5.5	1000/1500/2000/3000	65	2 3/8” REG, 2 3/8” IF
89	6.5	1000/1500/2000/3000/4500/6000	65	2 3/8” REG, 2 3/8” IF
102	6.5	1500/2000/3000/4000/5000/6000	75/83	2 7/8” REG
102	8.5	1500/2000/3000/4000/5000/6000	75/83	2 7/9” REG
114	6.5	1000/1500/2000/3000/4500/6000	89/95	3 1/2” REG, 3 1/2” IF, 2 7/8 IF
114	8.5	1500/2000/3000/4000/5000/6000	89/95	3 1/2” REG, 3 1/2” IF, 2 7/8” IF
127	10	3000/4000/5000/6000/8100/9140	89	3 1/2” REG, 4 1/2” REG
127	19	3000/4000/5000/6000/8100/9140	89	3 1/2” REG, 4 1/2” REG
140	11	3000/4000/5000/6000/8100/9140/10670	114	4 1/2” REG
140	19	3000/4000/5000/6000/8100/9140/10670	114	4 1/2” REG
