DTH Drill Rods

Product Details

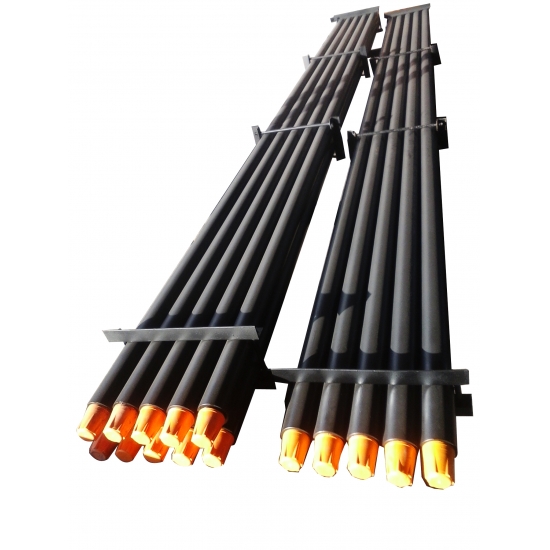

DTH Drill rod


DTH drill tubesare used for connecting DTH hammer and DTH button bits. The key features of ahigh quality DTH tube are durability, accuracy and manageability. All our DTHdrill rods used friction welded technology to ensure product quality.




DTH drill rods out diameter:

76mm, 89mm, 102mm,114mm




DTH drill rods thread sizes:

2 3/8”API Reg, 27/8” API Reg, 3 1/2” API Reg, 4 1/2” API Reg, 2 3/8” API IF, 3 1/2” API IF;




DTH drill rods length:

1000mm, 1500mm,2000mm, 30000mm, 6000mm;




DTH drill rods production technologies:

Frication wield;

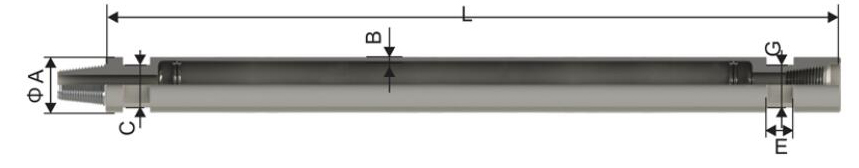

Standard Design Flush Joint Drill Pipe



dth drill rod


 OD A


Wall B  Length L  Across Flat C  Flat Length E  Across Flat G  Connection P / N
(mm)  (mm)  (mm)  (mm)  (mm)  (mm)


76



 5.5



1000/1500/2000/3000



 57



46



57



2 3/8'' REG



76


5.5 1000/1500/2000/3000 65 42 65  2 3/8'' REG


76


6.5  3000/4500/6000  65  42 65 2 3/8'' REG


89


5.5  1000/1500/2000/3000  65  42 65 2 3/8'' REG


89


6.5 1000/1500/2000/3000  65  42 65 2 3/8'' REG


89


5.5 1000/1500/2000/3000  65  42 65 2 3/8'' IF


89


6.5

1000/1500/2000/

3000/4500/6000

65  42 65 2 3/8'' IF


114


6.5

1000/1500/2000/

3000/4500/6000

95  45 95 2 3/8'' IF


114


6.5  1000/1500/2000/3000  95 45 95 3 1/2'' IF


114


6.5

1000/1500/2000/

3000/4500/6000

95 45  95 3 1/2'' REG
